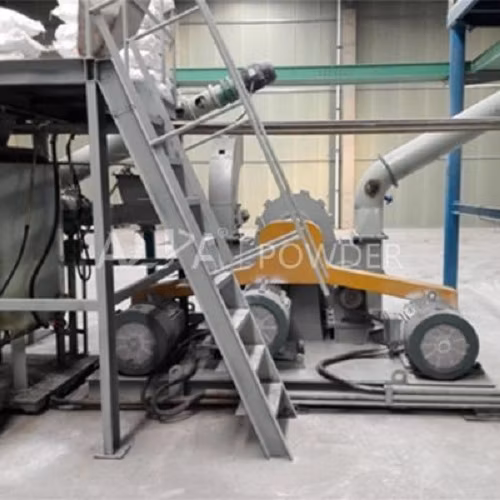

Zinc Oxide Calcite Limestone Powder Surface Coating Machinery with Pin Mill

Basic Info

Model NO.	Coating Process
Drive	Electric
Crushing Degree	Fine Grinding Machine
Crushing Style	Grinding and Impact
Cutter Material	Hard Alloy
Finished Surface	Outer Surface Process
Tongs′ Features	Universal Tongs
Function	to Deagglomerate The Material and Coated with Acid
COM	Carbon Steel or SS304
Fineness	2~45um
Capacity	100~5000kg/Hour
Material	Gcc, Magnesium Hydrate etc
Type Model	Turbo
Transport Package	Sea Package
Specification	Flexible arranged
Trademark	ALPA
Origin	Shandong
HS Code	8474209000
Production Capacity	100sets/Year

Product Description

Zinc Oxide Calcite Limestone Powder Surface Coating Machinery With Pin Mill Rotor Mill

Features and Advantages
Wide Range of ApplicationsThe ideal coating effect can be achieved for various inorganic mineral powders. High Coating EfficiencyThe highest cladding ratio or coating effect is achieved with minimal coating material or cost. High AutomationThe entire system is easy to operate, high efficiency and low cost. Flexible Production ProcessAccording to material characteristics and customer request, a continuous production process ora batch production process can be selected. Rich equipment selectionHas variety of options for different processes. Customizable SolutionProvide technical consultation and personalized solutions for coating process according to material characteristics and product use.

Working Principle

Coating mechanism
1. The basic principle of coating: obtain the highest coating rate or coating effect with the minimum coating material or cost;
2. Surface coating of mineral fillers, the main functions include dispersion, viscosity reduction, filling, and interface
mechanics;
3. The most commonly used coating methods are: surface chemical coating method, coated coating method, mechanical force chemical
coating method;
4. The coating methods mainly include: coating mechanism, modifier, coating process and equipment, process control, product testing and evaluation;
5. If the purpose, method and modifier of the coating are different, the process and equipment are also different.

Basic Process Requirements
1. The modifier uses dilution, emulsification, spray addition and other measures to improve the dispersion, preferably continuous spray or drip with the continuous feeding of the powder;
2. Precision metering and uniform feeding of modifier and materials to ensure the instantaneous precision of the ratio of the two, to achieve uniform and firm coating of the modifier on the surface of the powder, good controllability and stable product quality;
3. The regulation of the temperature and time of the system should meet the requirements of the coating mechanism or the modifier on the process conditions, and ensure the sufficiency of the coating reaction;
4. the equipment operating conditions are good;
5. The use of auxiliary equipment (deagglomerator or classifier), environmental factors (temperature, humidity), etc.

Technical Parameters

Model / Production Capacity / Particle Size	CUM-P200	CUM-P400	CUM-P630	CUM-P800
D97:5um	300kg/h	700kg/h	1800kg/h	3000kg/h
D97:10um	500kg/h	1300kg/h	3300kg/h	5800kg/h
D97:15um	600kg/h	1600kg/h	4000kg/h	7200kg/h

Note: The above data is exemplified by the coating of calcium carbonate GCC.

Related Engineering Case Shandong ALPA Powder Technology(abbreviation: ALPA / Equity Code: 171033) THE WORLD'S LEADING SUPPLIER OFULTRA-FINE POWDER SOLUTIONS
ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.
Who Choose ALPA
By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and engineering technology research centers have selected ALPA.More than 3,000 customers have chosen us

Q: What service do you supply?A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.3). We supply project engineering, automation engineering and civil engineering.4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.

Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.2). We supply one year warranty for all equipment and lifelong after-sales service.3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.4). Our engineers will go to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.

Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can provide free training for on-site workers.

Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
